LED Wall Types and Pricing: What to Expect Based on Your Needs
By Artur, LED Screen Technician at Canadian LED
As an LED screen technician at Canadian LED, I get asked a lot of questions about the different types of LED walls and, more importantly, their cost. Whether I’m setting up a screen for a corporate event in Toronto, installing a display in a church in Vancouver, or handling logistics for a festival in Montreal, the question of “How much does an LED wall cost?” always comes up.
The truth is, the video wall cost can vary widely depending on a number of factors. But don’t worry, I’m here to break it down for you in a way that makes sense and helps you make a smart decision based on your specific needs.
In this article, I’ll explain the different types of LED wall panels, what factors affect their cost, and offer a few pointers on how to choose the right display for your project. Whether you’re considering an LED screen for churches, corporate events, or retail, this guide will give you the knowledge you need to get started.
1. Types of LED Walls
A. Indoor LED Walls
Indoor LED walls are designed for environments where people are close to the screen, so clarity and resolution are key. These screens are typically used for corporate events, conferences, trade shows, and even in churches.
Key Features:
Pixel Pitch: Smaller pixel pitches (P2.5 to P3.9) provide higher resolution for close viewing.
Brightness: Indoor LED walls don’t require as much brightness as outdoor walls, making them more cost-effective for indoor settings.
Best For:
Corporate events
Conferences
Retail displays
LED screens for churches
Price Range: For a 10’x6’ indoor LED wall panel setup with a P2.6 resolution, you might expect to pay anywhere between $25,000 to $40,000 for permanent installation. For renting the same setup for a day or a few days, rental prices typically range from $2,500 to $3,500 per day, depending on the setup.
B. Outdoor LED Walls
Outdoor LED walls are built to endure various weather conditions, from rain to intense sunshine. These are designed for events like concerts, outdoor festivals, sporting events, and even advertising billboards.
Key Features:
Pixel Pitch: Larger pixel pitches like P4.8 or P6 are ideal since people tend to be farther away from the screen.
Brightness: Outdoor walls need to be brighter to stand out in the daylight, with brightness levels ranging from 5,000 nits to 10,000 nits.
Weatherproofing: These panels are built with special coatings to protect them from rain, dust, and extreme temperatures.
Best For:
Outdoor festivals
Sports arenas
Large public events
Billboards and advertisements
Price Range:
A large 20’x10’ outdoor setup with P4.8 panels could cost anywhere from $50,000 to $100,000 for permanent installations. Renting an outdoor setup could cost you $3,500 to $6,000 per day, depending on size, location, and specific setup requirements.

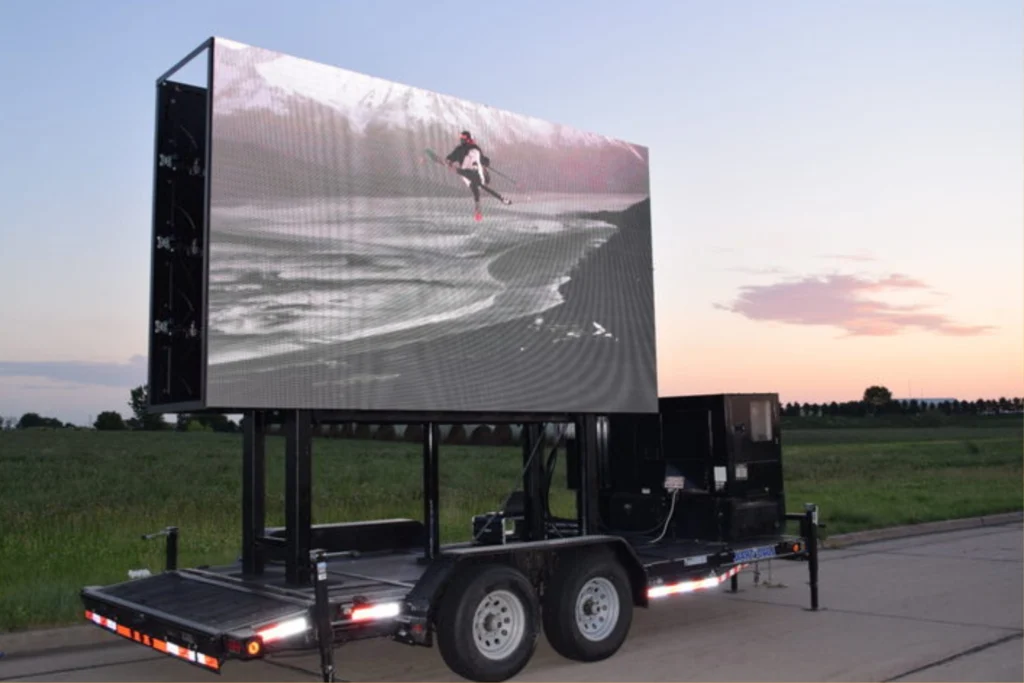

C. Mobile LED Walls
Mobile LED walls are mounted on trucks and can be set up quickly in almost any location. They’re perfect for events that require a temporary display, such as live concerts, political rallies, or large outdoor gatherings.
Key Features:
Portability: These walls can be easily transported from one location to another.
Quick Setup: Mobile LED screens can be set up and torn down in a fraction of the time compared to traditional installations.
Versatility: Ideal for both indoor and outdoor events, though they’re mostly used for outdoor settings.
Best For:
Concerts
Festivals
Political rallies
Outdoor advertising
Price Range:
For a mobile LED wall, the rental price typically ranges between $6,000 and $12,000 per day. If you’re looking to purchase a mobile setup, it can cost upwards of $100,000, depending on the complexity of the system.
D. Transparent and Virtual LED Walls
Transparent LED walls are becoming increasingly popular for creative and high-end installations. They allow you to display digital content while still allowing visibility through the screen, which can be useful for retail displays or artistic presentations.
Key Features:
Transparency: Offers a unique visual experience by allowing light to pass through the screen.
High Definition: Transparent walls typically offer stunning visuals and high definition for specialized displays.
Best For:
Retail stores
Artistic installations
High-end corporate offices
Price Range:
Transparent LED walls are more expensive than traditional ones. A 10’x5’ setup might cost you upwards of $30,000 for purchase, with rental prices typically depending on the complexity of installation and setup.
2. Factors That Affect LED Wall Pricing
A. Pixel Pitch
Pixel pitch refers to the distance between pixels on the display. Smaller pixel pitches (e.g., P2.0 or P2.6) are typically used for high-resolution displays, especially in environments where viewers will be close to the screen. Larger pixel pitches (e.g., P4.8 or P6) are more suitable for outdoor use, where viewers are generally farther away.
Impact on Price:
Smaller pixel pitches typically cost more because they offer better resolution and image clarity. For example, a P1.9 screen will be more expensive than a P4.8 screen because it’s designed for close-up viewing and high-detail applications.
B. Screen Size
Screen size is another major factor that determines the overall price. Larger LED walls require more LED wall panels, which means the cost increases as the size of the screen grows.
Impact on Price:
A larger screen typically costs more due to the increased number of panels and modules required. A 10’x6’ LED wall panel setup is significantly less expensive than a large 20’x10’ screen, especially when considering both installation and shipping costs.
C. Installation and Setup
Installation costs can vary widely depending on the complexity of the setup and the environment in which the LED wall is being installed. For example, installing a screen at a large outdoor event may require additional structural support, power supplysetups, and safety measures.
Typical Costs:
Simple setups might cost around $800 for installation, while more complex installations (e.g., multi-day setups or outdoor installations) can exceed $4,000.
D. Maintenance and Durability
Durability is another factor to consider when purchasing an LED wall. High-quality, durable walls tend to have a longer lifespan, reducing the need for maintenance over time.
Impact on Price:
Walls with better durability may cost more upfront, but they often save money in the long term, as they require less frequent repairs or replacement.
3. Rent or Buy? How to Decide
A. Renting an LED Wall
Renting an LED wall is ideal for short-term needs like events, festivals, and trade shows. When you rent an LED wall, you’re essentially paying for the display and the setup services on a temporary basis.
When to Rent:
For one-off events
If you don’t need a permanent display
When you’re working on a tight budget
B. Buying an LED Wall
Buying an LED wall is more cost-effective if you need a display for long-term use. This is ideal for permanent installations in churches, retail environments, or conference rooms.
When to Buy:
For permanent installations (e.g., in a church or retail space)
If you plan to use the LED wall frequently
4. Additional Costs to Consider
While pricing for LED walls is relatively straightforward, there are additional costs that can add up:
Controllers and Processors: Every LED wall needs acontroller to manage the content. Basic controllers start at around $600, but advanced models with 4K resolution can exceed $3,000.
Power and Cabling: Depending on the size of your screen, you may need specialized power supplies or cabling. Don’t forget to factor in these costs when budgeting.
Delivery and Labor: Shipping and installation costs can be substantial, especially for large or complex setups.
5. Conclusion
Choosing the right LED wall for your needs doesn’t have to be complicated. By considering the type of display, your intended use, and budget, you can make an informed decision. If you’re planning to use it long-term, like for LED screens for churches or retail spaces, buying might be the best option. If you’re only using it for a short-term event, renting could be more cost-effective.If you’re ready to take the next step, Canadian LED is here to help. Our team of experts will walk you through every stage of the process—from choosing the right screen to installation and maintenance. We’re here to ensure your display works seamlessly for your audience.For a better understanding of pixel pitch and how it affects LED walls, check out our YouTube video where we break down the basics of LED wall setup. Thanks for reading, and don’t hesitate to reach out for a free consultation!
